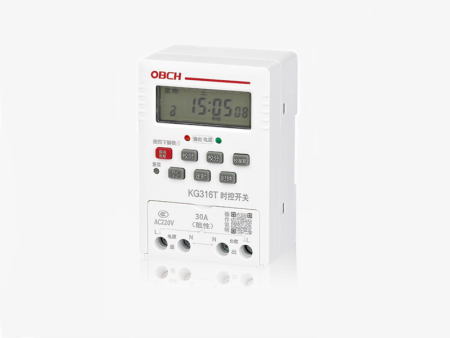

KG316T-XC/10A(resistive)

◎ Overview

KG316T-X is suitable for use as a delay timing component in control circuits with Ac 50/60Hz voltage below 380v, The power supply of various control circuits can be turned on or off according to the predetermined time, suitable for street lamps, neon lights, advertising sign lights, broadcasting and television equipment, and various household appliances.

Users can turn on (of) the latitude and longitude control function by setting the latitude and longitude time control switch, The time control switch will automatically adjust the switch time according to different geographical locations, latitude and longitude, and different seasons(dates)sunshine hours.

light controlled timing and rain controlled timing are suitable for use as delay timing components in control circuits with AC 50/60Hzvoltage below 380v. The power supply of various control circuits can be turned on or off at predetermined times, suitable for street lamps,neon lights, advertising sign lights, broadcasting and television equipment, and various household appliances.

◎ Technical  Parameter

 Rated insulation voltage Ui:AC380V;

 Rated control power supply voltage:AC110V,AC230V,AC380V;

   Usage     category:Ue:AC110V/AC240V/AC380V;le:6.5A/3A/1.9A;Ith:10A;AC-15;

 Shell protection level:IP20;Pollution level:Level 3;

 Load power:(resistive load:6KW;inductive load:1.8KW;motor load:1.2KW;lamp load:0.9KW)

 The switch time can be cycled daily orweekly;

The maximum time control is 168 hours,and the minimum timecontrolis 1 minute;

 Mechanicallifespan:greater than or equal to 1 million cycles;

 Electrica lifespan:greater than or equalto 100000 cycles.
