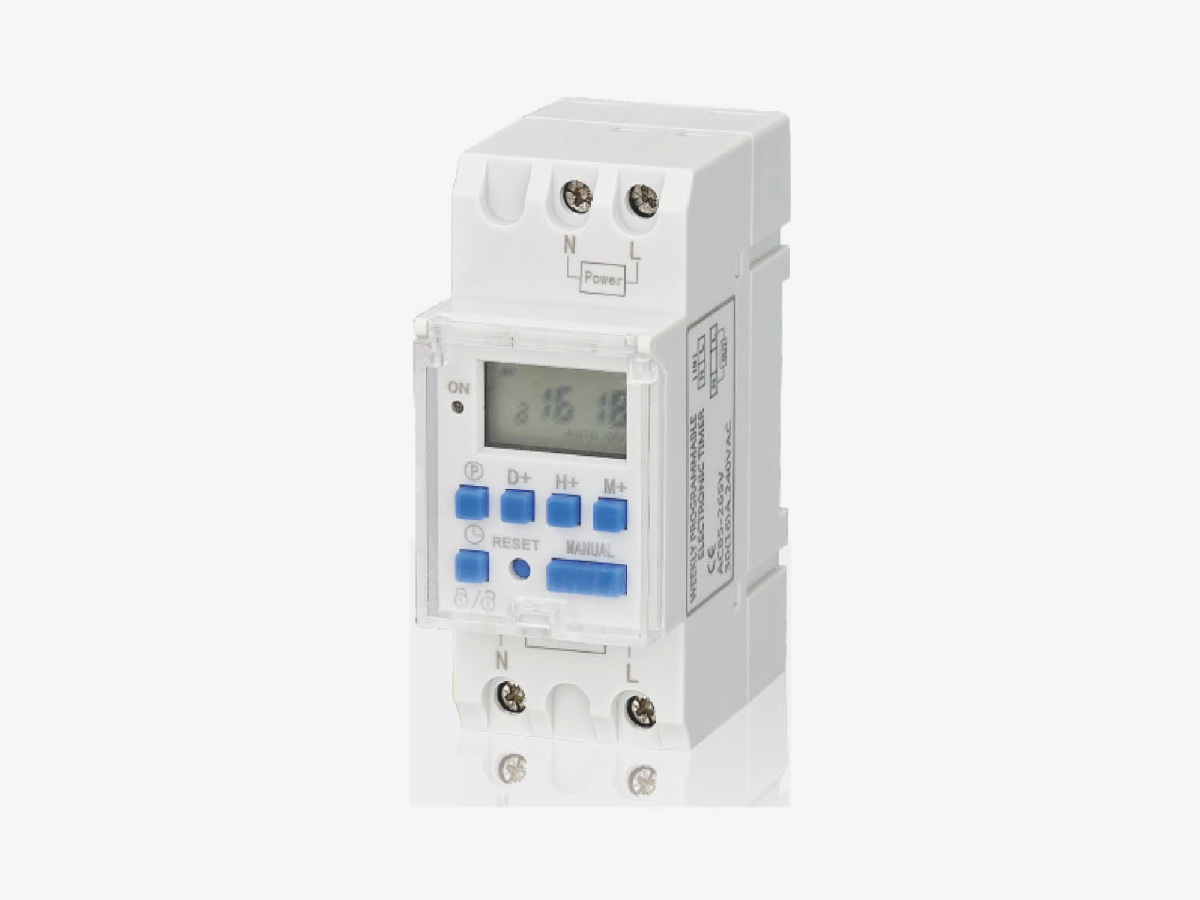

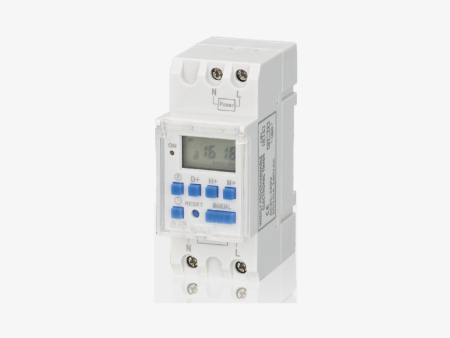

AHC15A (two in,two ou）

◎ Overview

Suitable for use as a delay timing component in control circuits with AC 50/60Hz voltage below 380V.The power supply of various control circuits can be turned on or off at predetermined times,suitable for street lamps,neon lights,advertising sign lights,broadcasting and television equipment,and various household appliances.

1.Normal working conditions and installation conditions;

2.Usage environment:altitude not exceeding 2000 meters;The ambient temperature shall not be higher than+40℃and not lower than -5℃;The range of power supply voltage variation is 85%-110%;Rated voltage:in a medium without severe vibration and explosion hazards,and without gases and dust that can corrode metals and damage insulation in the medium;In places where rain and snow cannot penetrate;

3.Vertical or horizontal installation.

◎ Technical  Parameter

●Ui:AC380V;

●Us:AC110V、AC220V、AC380V;

●   IP20;

●25A,AC220V

o Rated insulation voltage Ui:AC380V;

● Rated control power supply voltage Us:AC110V,AC220V,AC380V;

o Shell protection level:IP20;

o Contact capacity:25A,AC220V(resistive);Pollution level:Level 3;

o The switch time can be cycled daily or weekly

o Timing times:18 sets of switch times(manual and automatic dual-use)

o Time control range:1 minute to 168 hours

o Dailywalking time error:less than or equal to±1 second

●● Mechanicallifespan:greater than or equal to 1 million cycles

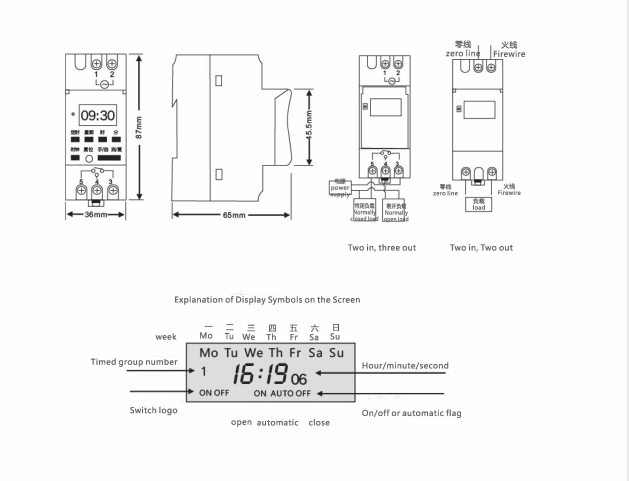

◎ Installation   size
