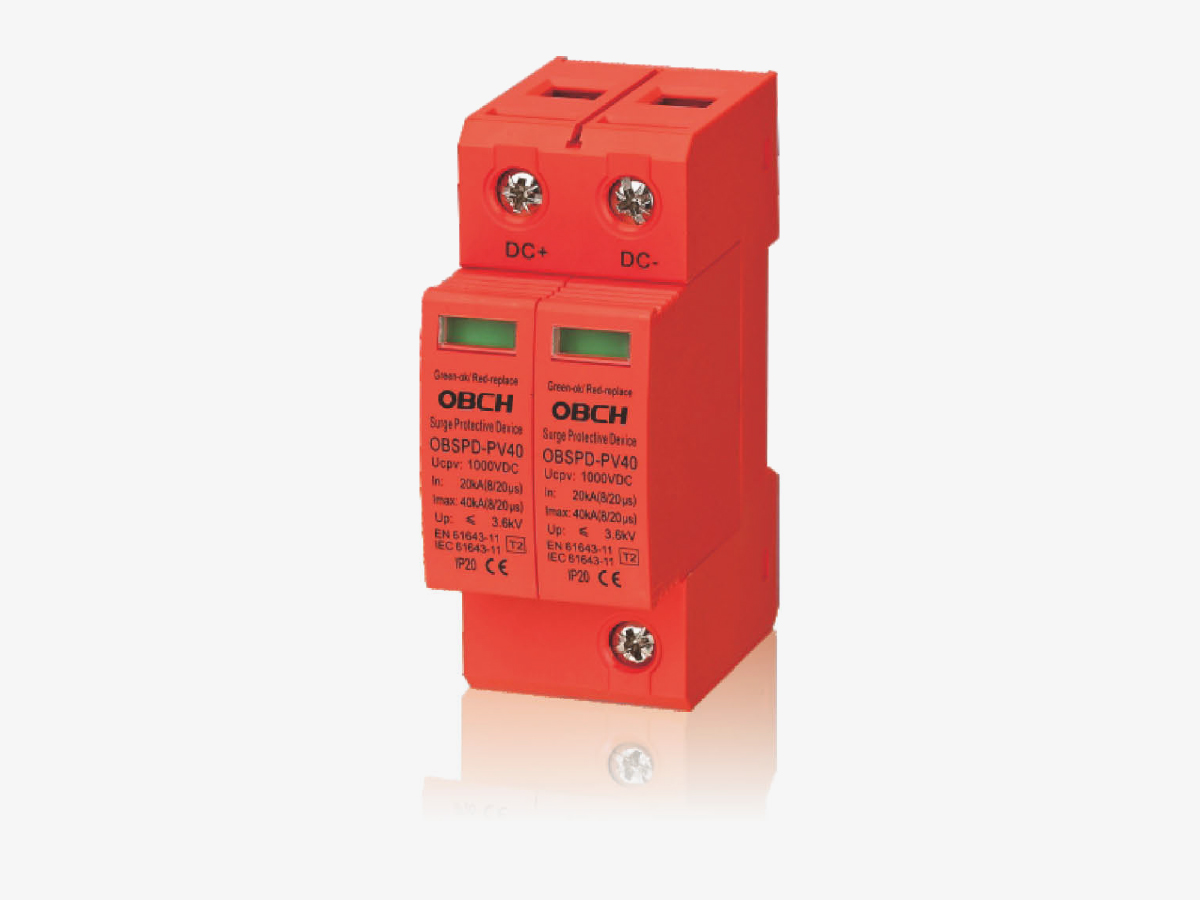

OBD6-PV series surge protector

◎ Overview

The OBD6-PV series surge protector (SPD)is mainly used for lightning protection in photovoltaic low-voltage DC distribution systems. The product adopts a brand new design,with a maximum continuous operating voltage of 1500V,which can effectively prevent lightning current from damaging photovoltaic supporting facilities such as solar panels, photovoltaic combiner boxes,DC distribution cabinets,and inverters.

The OBD6-PV series SPD has common mode(MC)and differential mode(MD)protection modes The product complies with standards such as IEC61643-1 and GB50057-2010.

◎install

Ushaped structure,pressure limiting combination.Differential mode common mode protection mode. Built in overheating and overcurrent protection mechanism.

Local faultindication,white during normal operation;After detachment failure,it turns red

Optional alarm module to achieve remote signaling function. Integrated structural design with high flowcapacity.

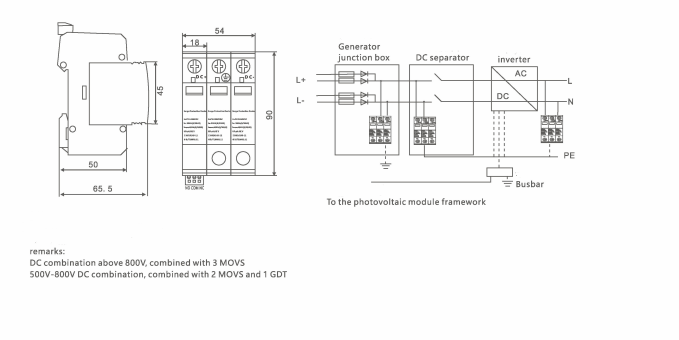

◎Installation size
